Product Description:

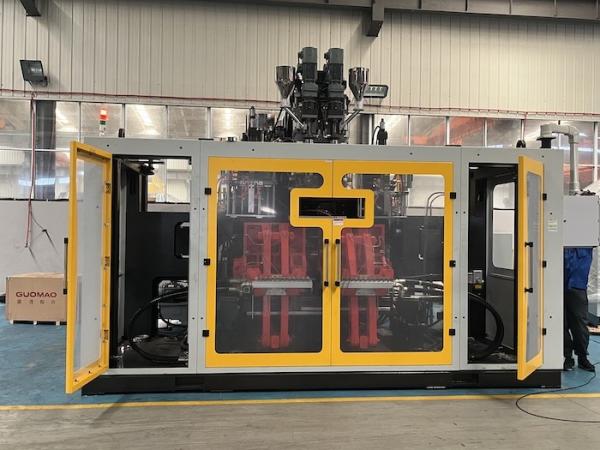

Functions of the MP Plastic Blow Molding Machine
The MP plastic blow molding machine is designed for the production of all kinds of plastic hollow products with a high molecular structure. It features specialized capabilities that make it capable of handling products ranging from 5 milliliters to 100 liters in size.
Among the plastic hollow products that the MP plastic blow molding machine can produce include bottles, pots, jars, barrels, toys, toolboxes, bed boards, desk boards, chairs and auto parts, among others. This machine is not limited to blowing only specific materials. It can handle various types of materials such as PE, PP, PVC, PA, PC, PS and EVA amongst others whilst still providing a high-quality end product.
Its capabilities in blowing such different materials provide numerous production possibilities, making it one of the premier machines of its kind in the industry.
Major technical parameters
| System | Item | Unit | Basic Parameter |
Basic specifications
| Applicable materials | | PE PP PVC PA… |
| Max product volume | L | 10 |
| Number of heads | SET | 1,2,3,4 |
Machine dimension (LxWxH) | M | 4x2.3x2.5 |
| Machine weight | TON | 8.2 |
| |
Mould clamping system | Mould clamping force | KN | 150 |
| Platen opening strokes | MM | 220-620 |
| Plate stroke | MM | 540 |
| Max mould sizes(WxH) | MM | 520x460 |
| |
Extrusion system
| Screw diameter | MM | 80 |
| Screw slenderness ratio | L/D | 24 |
| Plasticizing ability (HDPE) | KG/H | 90 |
| Screw heating stage/zone | Zone | 4 |
| Screw heating power | KW | 15.85 |
| Screw fan power | KW | 0.28 |
| Extrusion motor power | KW | 30 |
| | |
Head | Head heating stage/zone | Zone | 3 |
| Head heating power | KW | 10 |
| |
Energy consumption | Total machine power | KW | 80 |
| Oil motor power | KW | 18.7 |
| Air pressure | MPA | 0.6-0.8 |
| Compression air volume | M3/min | 1.5 |
| Cooling water volume | L/min | 40 |
Applications:
The MEPER Extrusion Blow Molder is suitable for a wide range of product application occasions and scenarios. This machine is ideal for producing high-quality plastic products such as bottles, containers, and jars. It is also suitable for use in the manufacturing of automotive parts, toys, and other plastic products. The machine is capable of producing products with a maximum volume of 10L, making it versatile and adaptable to different production needs.
The Extrusion Blowmolding Machine is equipped with a plate stroke of 540mm, which ensures precise and accurate product formation. The air pressure required for the machine is 0.6-0.8MPA, which is easily achievable in most industrial settings. The machine is compatible with a range of materials, including PE, PP, PVC, and PA, giving users flexibility in choosing the right material for their production needs.
The machine's dimensions are 4x2.3x2.5m, making it compact and easy to integrate into most production environments. The machine's supply ability is 100 sets per month, ensuring that users can get their hands on the product in a timely manner. The delivery time for the machine is 25-35 workdays, and payment terms are L/C or T/T.
In conclusion, the MEPER Extrusion Blow Moulder is a top-quality product that is suitable for a wide range of product application occasions and scenarios. Its versatility, compatibility with different materials, and compact size make it an ideal choice for manufacturers looking for a reliable and efficient extrusion blow molding machine.
Support and Services:
Our Extrusion Blow Molding Machine product is designed to provide high-quality and efficient manufacturing of plastic products. We offer technical support and services to ensure that our customers can maximize the potential of their machines. Our support team is available to help with installation, training, maintenance, and troubleshooting. We also offer spare parts and upgrades to keep your machines running smoothly. Our services are designed to minimize downtime and increase productivity. Contact us for more information on how we can support your manufacturing needs.
FAQ:
Q1: What is the brand name of the extrusion blow molding machine?
A1: The brand name of the machine is MEPER.
Q2: What is the model number of the machine?
A2: The model number of the machine is 100 FD.
Q3: What is the place of origin of the machine?
A3: The machine is manufactured in China.
Q4: Is the machine certified?
A4: Yes, the machine is certified with CE/ISO9001:2008.
Q5: What are the payment terms for purchasing the machine?
A5: The payment terms for purchasing the machine are L/C and T/T.
Q6: What is the minimum order quantity for the machine?
A6: The minimum order quantity for the machine is 1 set.
Q7: What is the packaging detail for the machine?
A7: The machine is packed in standard export package, wooden pallet (standard) wooden case (optional).
Q8: What is the delivery time for the machine?
A8: The delivery time for the machine is 25-35 work days.
Q9: What is the supply ability for the machine?
A9: The supply ability for the machine is 100 sets per month.
Q10: Is the price of the machine negotiable?
A10: Yes, the price of the machine is negotiable.
